JOHN DEERE

Wheel Loader   -   Transmission Parts





444, 444C, 444D, 544, 544A, 544B, 544C, 544D, 644, 644A, 644B, 644C, 644D, 646, 646B, 646C

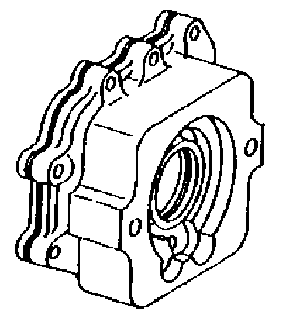

Hydraulic Pump Assy. charging



Part # AT69098



Fits 644B, 644C, 646, 646B, 646C

Hydraulic Pump Assy.   charging



Part # AT72878



Fits 444, 544, 544A, 544B, 544C

Hydraulic Pump Assy. charging



Part # AT56588



Fits 444, 544, 544A

Transmission   PUMP DRIVE SHAFT

 42 teeth 10" long



Part # T30921



Fits 444, 444C, 444D, 544(Above sn#77650)544A(Above sn#77650),544B, 544C, 544D, 644B, 644C, 644D, 646, 646B, 646C

Transmission   PUMP DRIVE SHAFT

44 teeth 10" long



Part # T29927



Fits 544C, 644A, 644B, 644C, 646, 646B, 646C

Transmission   1st TURBINE GEAR

60 teeth



Part # T72081



Fits 444, 544, 544A, 544B, 544C

Transmission   1st TURBINE GEAR

60 teeth



Part # T27830



Fits 444, 444C, 544, 544A, 544B, 544C, 544D, 644A, 644B, 646, 646B

Transmission   FREE WHEEL GEAR

39 teeth



Part # T78674



Fits 444, 444C, 444D, 544B, 544C, 544D, 644B, 644C, 644D, 646, 646B, 646C

Transmission   FREE WHEEL GEAR

39 teeth



Part # T27872



Fits 444C, 444D, 544B, 544C, 544D, 644B, 644C, 644D, 646, 646B, 646C



Transmission 315C,D





SECTION 3: TRANSMISSION / BRAKE
Auto Transmission parts diagram
315C, D

JDDiag





SECTION 3: TRANSMISSION / BRAKE
Auto Transmission part No. listing
315C, D




ITEM NO.

PART NO.
MODELS C, D, E

EQUIV. GENUINE PART NO.

DESCRIPTION



C3047



Trans gasket kit

11

C3042

AN152163

Oil seal

15

C3075

JD8518

Bearing

16

C3048

T100742

Bearing retainer gasket

20

C3049

T100683

Valve cover gasket

37a

C3050

na

Gasket - Oil pan

42

C3026

R27564

Seal ring

47

C3012

AT106570

Adapter

51

C3027

T100743

Seal ring

53

C3015

AT101448

Output shaft Assy-planetary

53a-f

C3022

na

Kit - Inner pinoin (1 gear only)

53g-l

C3023

na

Kit - Outer pinion (1 gear only)

54

C3052

JD10352

Needle bearing

55

C3028

T101000

Thrust washer

56

C3026

T100744

Sealing ring

58

C3016

AT101449

Drive gear & pinion

59

C3019

T101002

Clutch hub

61

C3027

T100743

Seal ring

62

C3017

T101001

Ring gear

64

C3021

T101003

Pressure plate - rear

65

C3043

T101001

Plate - sintered (Q7)

66

C3044

T100680

Plate - steel (Q6)

67

C3020

T101004

Pressure plate - front

69

C3024

T101005

Belleville spring

71

C3031

T101007

Ring

72

C3032

T101008

Piston Forward Clutch

73

BS226

T101009

O-ring

74

C3018

T101010

Cyliner Forward Clutch

77

C3062

JD10351

Bearing

80

C3046

AT100837

Plate friction (Q3)

81

C3045

T100681

Plate Steel (Q3)

83

C3013

T101015

Pressure plate

84

C3014

T101013

Piston-reverse

85

C3030

T101014

Seal

86

C3029

AT106570

Bush

87

BS238

T100685

O-ring

88

C3051

T100684

Gasket-transmission



C3053 plate kit includes:
C3021 x 1
C3020 x 1
C3043 x 7
C3044 x 6
C3045 x 2
C3046 x 3

Auto Transmission
400, 400A, 410





SECTION 3: TRANSMISSION / BRAKE
Auto Transmission
400, 400A, 410

J3001

J3001

J3002

J3002

J3028

J3028

J3027

J3027

J3030

J3030

X3003

X3003




Description

400

400A

310B, 410

Transmission pump

-
AR96662

-
AR39053

-
RE13915

Trans pump gear set

J3029
Gen not av

J3029
AR39164

-
AR31980

Piston seal

J3030
R33059

J3030
R33059

J3030
R33059

Friction disc

J3001 (Q=3 forward,
Q=4 reverse)
RE23000

J3001 (Q=3 forward,
Q=4 reverse)
RE31404

J3001 (Q=3 forward,
Q=4 reverse)
RE23000

Steel disc

J3002 (Q=3 forward,
Q=4 reverse)
R57345

J3002 (Q=3 forward,
Q=4 reverse)
R57345

J3002 (Q=3 forward,
Q=4 reverse)
R57345

Piston ring

J3030
R33059

J3030
R33059

J3030
R33059

Gasket top cover

J3028
T21641

J3028
T21641

J3028
T21641

Gasket rear housing

J3027
T2168

J3027
T2168

-
T36236

Gear Lever

J3031
R53817

J3031
R53817

-
T33597 early
-
T40984 late

Gear Lever Boots

X3003
L31055

X3003
L31055

-
T40985



Rear Axles and Brake
J400 to J315D







SECTION 3: TRANSMISSION & BRAKE
Rear axle & brakes
400 to 315D

J3012

J3012

j3005
J3004

J3004

J3005

j3021

J3021




BRAKE

400

400A

410

310C,315C

300D,310D,
315D

Rear axle seal-outer

J3004
AT20703

J3004
AT20703

J3004
AT20703

J3004
AT20703

J3004
AT20703

Rear axle seal sleeve

J3005
T21429

J3005
L35542,T21429

J3005
T21429

J3005
T21429

J3005
T21429

Outer axle bearing

J3006
JD8946/8206

J3006
JD8946/8206

J3006
JD8946/8206

J3006
JD8946/8206

J3006
JD8946/8206

Inner axle bearing

-
JD9007/8206

M3094
JD8151/8206

M3094
JD8151/8206

M3094
JD8151/8206

M3094
JD8151/8206

Inner axle seal

J3009
AT21693

J3009
AT21693-early
-
AT23547-late

J3008
AT16887

J3008
AT16887

J3008
AT124396

Gasket trumpet housing

J3021
T21419

J3021
T21419

J3021
R98915

J3021
R98915

J3021
R98915

Brake plate

J3012
AT22034

J3012
AT63106

J3012
AT58574 early
AT63106 late

-
AT101718 early
J3012
AT63106 late

J3012
AT63106

Brake piston seal– outside

J3010
R50704

J3010
R50704

J3007
T28473

J3007
T28473

J3013?
L56246

Brake piston seal– inside

J3011
R50703

J3011
R50703

J3010
R50704

J3010
R50704

J3013
L56244
