CASE W20B PARTS

Transmission Assy.
Transmission Assy.

Transmission Parts



Transmission Assy. # L77833 # 6884185

W20B prior to s/n# 9134433



Transmission Assy. # L100804 # 23010700

W20B s/n# 9134433 and after

Torque Converter - Transmission Front Cover section
Torque Converter - Transmission Front Cover section

Flex Plate Drive Disc # D46335

Flex Plate Backing Plate # L35093 used with L55661 and L77833 transmissions

Flex Plate Backing Plate # D46336 used with L100803 and L100804 transmissions



Cover # D46337



First Turbine Assy. # L33614

Second Turbine # N6382

Stator # L33617

Pump Assy. # L33931

Accessry Drive Gear # L35399

Diaphragm # L34000

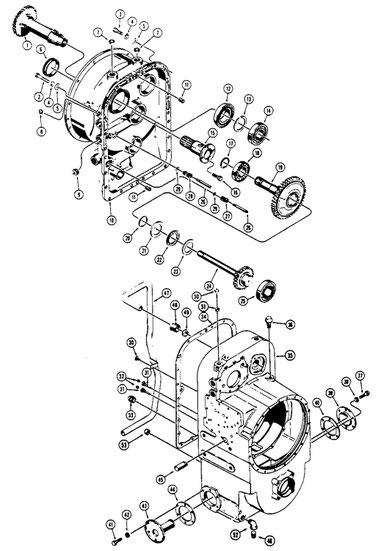

Torque Converter Housing, Gears and Transmission Housing
Torque Converter Housing, Gears and Transmission Housing

Pump Driven Gear # L32399



Torque Converter Housing # L33923



Second Turbine Drive Gear and Shaft # D75481



First Turbine Drive Gear and Shaft # D47447 W18 and W20 only

First Turbine Drive Gear and Shaft # D77490 W20B only



Converter Ground Sleeve # D47444



Turbine Driven Gears, Freewheel Units and Front Covers
Turbine Driven Gears, Freewheel Units and Front Covers

Second Driven Gear and Shaft # L35508



Freewheel Cam # N6397



First Turbine Driven Gear # D47456 W18 and W20 only

First Turbine Driven Gear # D77491 W20B only



Cover, rear # N6374

Reverse Clutch and Planetary
Reverse Clutch and Planetary

Reverse Clutch Piston # # N6385



Forard and Reverse Clutch Sun Gear # L32404



Plate Disc Inner # N7022

Plate Disc Outer # L33958



Reverse Clutch Planetary Carrier # L35636



Forward and Reverse Clutch Anchor # L33973

Forward Clutch and Planetary
Forward Clutch and Planetary

Forward Clutch Planetary Carrier # L35533



Forward Clutch Ring Gear # N6384



Forward Clutch Piston # N6399



Forward Clutch Piston Housing # L33977



Plate Disc Inner # N7022

Plate Disc Outer # L33958



High Range Clutch and Transfer Gear
High Range Clutch and Transfer Gear

High Range Clutch Piston Housing # L33928



High Range Clutch Piston # L32409

High Range Clutch Piston # N7023

High Range Clutch Hub # L35534



Plate Disc Outer # L33958



Transfer Drve Gear # D49396

Axle Output Shaft and Parking Brake
Axle Output Shaft and Parking Brake

Transmission to rear axle drive shaft Flange # L36064



Output Shaft # L36058



Transfer Gear # D47487



Transmission to front axle drive shaft Flange # L36055



Parking Brake Shoe # D47524



Parking Brake Drum # D47527



Parking Brake Backing Plate # L33622

Hydraulic Pump Assy. charging
Hydraulic Pump Assy. charging

Hydraulic Pump Assy. charging # D72786

used with transmission # L55661 and # L77833





Hydraulic Pump Assy. charging # N6379

used with transmission # L100803 and # L100804

Hydraulic Control Valve Assy.
Hydraulic Control Valve Assy.

Hydraulic Control Valve Assy. # D71463

before transmission s/n# 117175





Hydraulic Control Valve Assy. # N7315

transmission s/n# 117175 and after

Overhaul Kit - Gaskets & Seals
Overhaul Kit - Gaskets & Seals

Gasket Kit # L35269



Seal Kit # L31079

Axle, Differential and Planetary Parts



Axle Assy. # L71360   # L78001



Axle Housing # D74468



Differential Assy. # N8197   D80558



Gear Set ¨Crown & Pinion¨ # D80555

Side Gear # D74472

Pinion Spider Gear # D74473

Spider # D74476

Flange Yoke # D74480



Planetary Carrier Assy. #



Carrier # D74451

Pinion Gear # D74452

Pinion Shaft # D74453

Sun Gear # D74464

Ring Gear # D74454

Hub Gear # D77569



Spindle # D77567   # N6813

Spindle # D74457   # N6813



Wheel Hub # D74450



Drum disc # D74461



Axle Shaft # D74465 left-hand front and right-hand rear, 39.724" (1009 mm) long



Axle Shaft # D74466  right-hand front and left-hand rear, 42.008" (1067 mm) long
