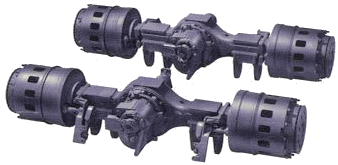

CLARK AXLES, DIFFERENTIALS, PLANETARY

Single Speeds 1390 thru 25000
Double Reduction Series
BD45/60 * 50/60 * BD70-71 BD90-91 BD121
Axles / Essieux
Differentiels
Gear Set - Crown & Pinion
Side Gears
Pinion Spider Gears
Spider Cross
Planetary Carrier / Porteur de planetaire
Pinion Gears
Pinion Shafts
Sun Gears
Ring Gears
Hub Gears
Spindles / Fusees

Specifications



Caractéristiques

Series Série Carrying Capacity LBS (KG) LBS capacité de charge (kg) Available Ratio Rapport disponible Available Track Range IN (MM) Plage de piste disponible en (mm) Min. Min. Rim (Dual) Size Rim (double) Taille Air Brake Size Taille de freins à air Diff and Carr Ring Gear Dia IN (MM) Diff et Dia Carr couronne dans (MM) Planetary Gear Ratio Rapport de démultiplication planétaire
BD45-60 BD45-60 Tandem 50,000 (22,680) Tandem 50.000 (22'680) 9.14 to 22.35 9,14 à 22,35 72 to 98.5 72 à 98,5
(1,828.8 to 2,502) (1,828.8 à 2502) 		20 20 16.5 x 7 16,5 x 7
(419.1 x 177.8) (419,1 x 177,8) 		13.875 13,875
(352.4) (352.4) 		3,529 3529
GCW 155,000 GCW 155000
(70,310) (70,310)
BD50-60 BD50-60 Tandem 50,000 Tandem 50.000
(22,680) (22,680) 		9.14 to 22.35 9,14 à 22,35 73.62 to 100.12 73,62 à 100,12
(1,870 to 2,543) (1.870 à 2.543) 		20 20 16.5 x 7 16,5 x 7
(419.1 x 177.8) (419,1 x 177,8) 		13.875 13,875
(352.4) (352.4) 		3529 3529
GCW 150,000 GCW 150000
(68,040) (68,040) 		74.12 to 100.62 (1,882.6 to 2,555.7) 74,12 à 100,62 (1,882.6 2,555.7 d') 24 24 20 x 7 (508.0 x 177.8) 20 x 7 (508,0 x 177,8)
BD-57000 BD-57000 Tandem 60,000 (27,220) Tandem 60.000 (27.220) 8.67 to 21.76 8,67 à 21,76 90.12 and 100.12 (2,289.0 and 2,543.0) 90.12 et 100.12 (2,289.0 2,543.0 et) 20 20 16.5 x 7 (419.1 x 177.8) 16,5 x 7 (419,1 x 177,8) 16.375 (416.0) 16,375 (416,0) 3,529 3529
GCW 175000 (79,380) GCW 175000 (79.380) 90.62 and 100.62 (2,301.7 and 2,555.7) 90.62 et 100.62 (2,301.7 2,555.7 et) 24 24 20 x 7 (508.0 x 177.8) 20 x 7 (508,0 x 177,8)
D-65200 D-65200 Tandem 60,000 (27,220) Tandem 60.000 (27.220) 8.67 to 21.76 8,67 à 21,76 80.12 to 100.12 (2,035.0 to 2,543.0) 80,12 à 100,12 (2,035.0 2,543.0 d') 20 20 16.5 x 7 (419.1 x 177.8) 16,5 x 7 (419,1 x 177,8) 16.375 (416.0) 16,375 (416,0) 3,529 3529
GCW 175,000 (79,380) GCW 175,000 (79,380) 80.62 to 100.62 (2,047.7 to 2,555.7) 80,62 à 100,62 (2,047.7 2,555.7 d') 24 24 20 x 7 (508.0 x 177.8) 20 x 7 (508,0 x 177,8)
BD-71000 BD-71000 Tandem 80,000 (36,290) Tandem 80.000 (36.290) 9.00 to 22.60 9,00 à 22,60 80.62 to 109.88 (2,047.7 to 2,791.0) 80,62 à 109,88 (2,047.7 2,791.0 d') 24 24 20 x 7 (508.0 x 177.8) 20 x 7 (508,0 x 177,8) 16.375 (416.0) 16,375 (416,0) 3,666 3666
GCW 250,000 (113,400) GCW 250,000 (113,400)
BD-91000 BD 91000 Tandem 100,000 (45,360) Tandem 100,000 (45,360) 9.00 to 22.60 9,00 à 22,60 86 to 111 (2,184.4 to 2,819.4) 86 à 111 (2,184.4 2,819.4 d') 24 24 20 x 7 (508.0 x 177.8) 20 x 7 (508,0 x 177,8) 16.375 (416.0) 16,375 (416,0) 3,666 3666
GCW 250,000 (113,400) GCW 250,000 (113,400)
BD-101000 BD-101000 Tandem 100,000 (45,360) Tandem 100,000 (45,360) 11.46 to 28.77 11,46 à 28,77 92 to 117 (2,336.8 to 2,971.8) 92 à 117 (2,336.8 2,971.8 d') 25 25 20 x 7 (508.0 x 177.8) 20 x 7 (508,0 x 177,8) 16.375 (416.0) 16,375 (416,0) 4,666 4666
GCW 300,000 (136,080) GCW 300,000 (136,080)
BD-121000 BD-121000 Tandem 120,000 (54,430) Tandem 120,000 (54,430) 12.31 to 15.27 12,31 à 15,27 106 (2,692.4) 106 (2,692.4) 25 25 20 x 7 (508.0 x 177.8) 20 x 7 (508,0 x 177,8) 18.50 (470.0) 18.50 (470.0) 4,666 4666
GCW 500,000 (226,800) GCW 500.000 (226.800)
Note: Ratings may vary with application. Remarque: Les notes peuvent varier selon l'application. Approval for all applications must be obtained. L'approbation de toutes les demandes doivent être obtenues.
