TEREX TA40 PARTS

Terex TA40 Transmission Parts, Differential Parts and Planetary Parts

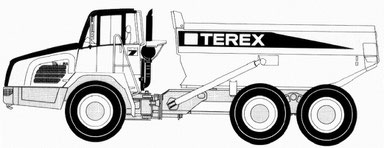

Terex TA40

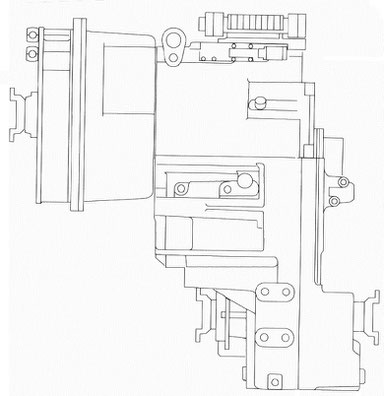

Transmission Parts

Transmission Assy. #   Allison 4500ORS fully automatic

Transmission Assy. # 15311595   ZF 6WG310

s/n# A8201001 to A8291121

Transmission Assy. # 15312737   ZF 6WG310

s/n# A8291122 and after

s/n# A8711011 and after

Seal & Gasket Kit # 15275616   transmission overhaul kit

s/n# A8201001 to A8291121

Seal & Gasket Kit # 15312737   transmission overhaul kit

sn# A8711011 and after

Transmission Assy. # 15258782   # 915258782   ZF 6WG310

Transmission Assy. # 15307730   # 915307730   ZF 6WG310

Transmission Assy. # 15311595   # 915311595   ZF 6WG310

Transmission Assy. # 15303735   # 915030735   ZF 6WG310

Transmission Assy. # 15316809   # 915316809   ZF 6WG310

 Torque Converter # 15500033

s/n# A8711011 and after

 ZF Model # 6WG310   # 4646076009   # 4646-076-009

Axle, Differential & Planetary Parts

Axle Assy. # 15308851   front

s/n# 8291001 and after

Axle Housing # 15275540   axle casing

Differential Assy. # 15275563   front

Helical Pinion # 15269793   gear

Helical Wheel # 15269795   gear

Gear Set ¨Crown & Pinion¨ # 15273193   2400 ratio

Side Gear # 15265888

Pinion Spider Gear # 15273798

Spider # 15265865

Half Shaft # 15267716

Flange Yoke #

Planetary Carrier Assy. #

Carrier # 15265802

Pinion Gear # 15265804

Pinion Shaft # 15265801

Sun Gear # 15265808

Ring Gear # 15265815

Hub Gear # 15265816

Spindle # 15275562   stub axle

Wheel Hub # 15275560

Disc brake #

Axle Shaft # 15265811   LH

Axle Shaft # 15265810   RH

Axle Assy. # 15308852   centre

s/n# A8201001 to A8201014

Axle Housing # 15275546   axle casing

Differential Assy. # 15273204   centre

Spider # 15265975

Pinion Spider Gear # 15265976

Gear # 15265948

Gear # 15265949

Helical Pinion # 15269796 gear

Helical Wheel # 15269795 gear

Gear Set ¨Crown & Pinion¨ # 15273193   2400 ratio

Side Gear # 15265888

Pinion Spider Gear # 15273798

Spider # 15267865

Half Shaft # 15271232   16 splines 2.5¨od.

Flange Yoke # 15265937

Planetary Carrier Assy. #

Carrier # 15265802

Pinion Gear # 15265804

Pinion Shaft # 15265801

Sun Gear # 15265808

Ring Gear # 15265815

Hub Gear # 15265816

Spindle # 15275562   stub axle

Wheel Hub # 15275560

Disc brake #

Axle Shaft # 15265810   RH

Axle Shaft # 15265811   LH

Axle Assy. # 15313723   centre

s/n# A8201015 and after

Axle Housing # 15275546   axle casing

Differential Assy. # 15275597   centre

Spider # 15265975

Pinion Spider Gear # 15265976

Gear # 15265948

Gear # 15265949

Helical Pinion # 15269796   gear

Helical Wheel # 15269795   gear

Gear Set ¨Crown & Pinion¨ # 15273193   2400 ratio

Side Gear # 15265888

Pinion Spider Gear # 15273798

Spider # 15267265

Flange Yoke # 15265937

Planetary Carrier Assy. #

Carrier # 15265802

Pinion Gear # 15265804

Pinion Shaft # 15265801

Sun Gear # 15265808

Ring Gear # 15265815

Hub Gear # 15265816

Spindle # 15275562   stub axle

Wheel Hub # 15275560

Disc brake #

Axle Shaft # 15265811   LH

Axle Shaft # 15265810   RH

Axle Assy. # 15308853   rear

s/n# A8201001 and after

Axle Housing # 15275549   axle casing

Differential Assy. # 15275564   rear

Gear Set ¨Crown & Pinion¨ # 15274388

Side Gear # 15265888

Pinion Spider Gear # 15273798

Spider # 15267865

Flange Yoke # 15274396   flange coupling

Planetary Carrier Assy. #

Carrier # 15265802

Pinion Gear # 15265804

Pinion Shaft # 15265801

Sun Gear # 15265808

Ring Gear # 15265815

Hub Gear # 15265816

Spindle # 15275562   stub axle

Wheel Hub # 15275560

Disc brake #

Axle Shaft # 15265811   LH

Axle Shaft # 15265810   RH
