JOHN DEERE 444C PARTS

John-Deere 444C Transmission Parts, Torque Converter Parts, Axle Parts, Differential Parts, Planetary Parts.

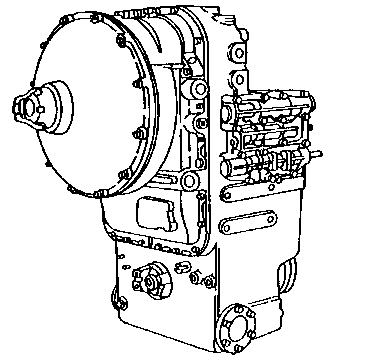

Transmission Assy.
Transmission Assy.

Transmission Parts



Transmission Assy. #

Allison Model # TT2221-1   BM # 6837760



Transmission Assy. # AT26022

Allison Model # ?   BM # ?



Transmission Assy. # AT27351

Allison Model # ?   BM # ?



Transmission Assy. # AT46821

Allison Model # ?   BM # ?





Hydraulic Pump Assy.   - charging oil # AT72878





Torque Converter
Torque Converter

Torque Converter Parts



First Turbine # AT26041



Second Turbine # T38735



Stator # T29928



Pump # AT37544



Accessory Drive Gear # T54037

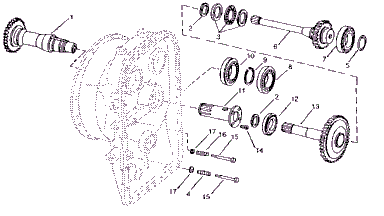

Torque Converter Drive Gears
Torque Converter Drive Gears

Torque Converter Drive Gears



Gear # T30921   42 teeth



Gear # T27929   24 teeth



Gear # T58943   46 teeth



Ground Sleeve # T27922



Torque Converter Housing
Torque Converter Housing

Torque Converter Housing



Housing # AT38762   24 mh to transmission and 24 mh to cover



Cover # T27801   12 mh



Freewheel section
Freewheel section

Transmission Freewheel section



Gear # T40210   38 teeth



Cam # AT37789



Cgae # T38975



Needle Roller # T27824   (15)



Gear # T27830

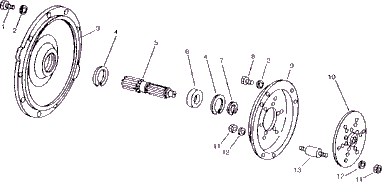

Transmission Drive & Damper
Transmission Drive & Damper

Transmission Drive & Damper



Cover # T45809   to flywheel housing



Shaft # T27399   13 teeth and 23 teeth



Drive Damper Plate # T31326



Driven Damper Plate # AT42693

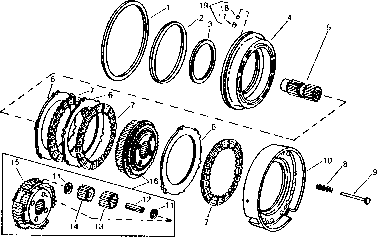

Transmission Low Clutch section
Transmission Low Clutch section

Transmission Low Clutch section



Reverse Ring Gear # T57109   59 teeth



Forward Ring Gear # T61058   59 teeth



Forward Piston # T38980



Forward Piston Housing # T38981



Clutch Disc inner # T67544   # T27837   internal



Clutch Disc outer # T38974   external

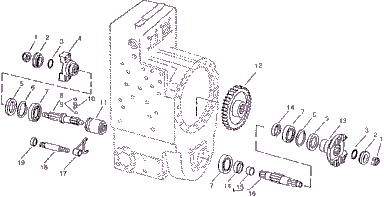

Transmission Output Shaft wihtout rear axle disconnect
Transmission Output Shaft wihtout rear axle disconnect

Transmission Output Shaft section without rear axle disconnect



Rear Output Shaft Flange Yoke # T49117



Output Shaft # T49118



Front Output Shaft Flange Yoke # T49116



Transfer Driven Gear # T78674   # T27872   39 teeth

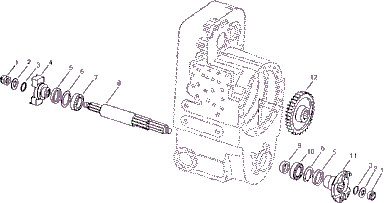

Transmission Output Shaft with rear axle disconnect
Transmission Output Shaft with rear axle disconnect

Transmission Output Shaft with rear axle disconnect



Rear Output Shaft Flange Yoke # T49117



Shaft # T49119



Disconnect Coupling #T35548



Transfer Driven Gear # T78674   # T27872



Front Output Shaft Flange Yoke # T49116



Shaft # AT47612   with bushing



Disconnect Shifter Fork # T35532



Disconnect Shifter Shaft # T35531

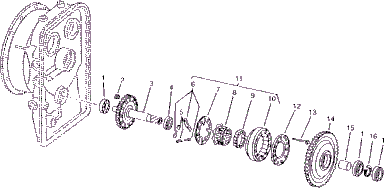

Transmission Reverse Clutch and Planetary
Transmission Reverse Clutch and Planetary

Transmission Reverse Clutch and Planetary section



Piston # T38979



Forward and Reverse Sun Gear # T27835   21 teeth



Clutch Plate # T38974   disc outer, external



Clutch Plate # T67544   # T27837   disc inner, internal



Reverse and Forward Clutch Anchor # AT37790



Planetary Carrier Assy. # AT38761   # AT64338





Transmission   High-Range Clutch section
Transmission High-Range Clutch section

Transmission   High-Range Clutch section



Gear # AT78241   # AT28269   57 teeth



Clutch Plate # T27858



Clutch Plate # T38974   disc outer, external



Hub # T40209



High-Range Piston # T71600   # T29926



High-Range Piston Housing # AT37483

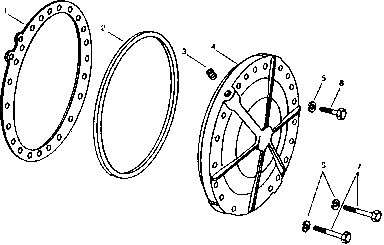

Transmission Front Cover section
Transmission Front Cover section

Transmission Front Cover section



Front Cover # T66716   19 mh





Transmission Rear Cover section
Transmission Rear Cover section

Transmission Rear Cover section



Rear Cover # T27906   24 mh



Input Shaft # T27907



Input Shaft Flange Yoke # T27817





Transmission   Hydraulic Pump Assy.   oil charging
Transmission Hydraulic Pump Assy. oil charging

Transmission Hydraulic Pump Assy.   - oil charging



Hydraulic Pump Assy. # AT72878   # AT60533   - oil charging





ASxle Shaft & Planetary section
ASxle Shaft & Planetary section

Axle Shaft & Planetary section



Axle Shaft # R69209   spindle



Planetary Carrier # R69458



Planetary Pinion Gear # R33032



Planetary Pinion Shaft # R63112



Planetary Sun Gear Shaft # R49427









Axle Housing & Planetary Ring Gear
Axle Housing & Planetary Ring Gear

Axle Housing & Planetary Ring Gear section



Axle Housing # AR101716   front

Marked # R75366   or   # R63967   # AR79684



Axle Housing # AR52040   rear

Marked # RE42253   or   # R100309   or   # R111148



Planetary Ring Gear # R75359

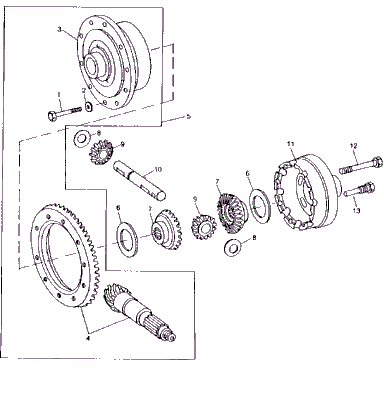

Axle   Differential   Standard
Axle Differential Standard

Axle   Standard Differential section



Gear Set   Crown & Pinion # RE18893   rear

Marked # R41973 and # YZ121094



Gear Set   Crown & Pinion # RE18984   front

Marked # R41972 and # YZ121001



Differential Case # R48443   lower section, crown support section



Differential Case # R48448   upper section, cover spider gears section



Side Gear # R63477



Pinion Spider Gear # R42444



Pinion Spider Shaft # R58425

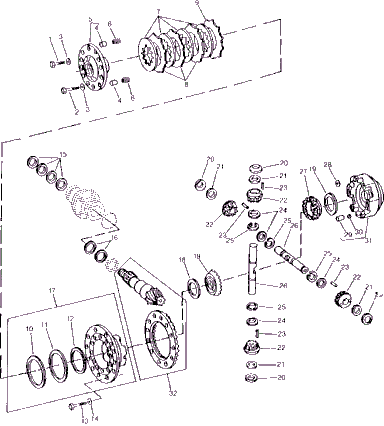

Axle Differential Lock
Axle Differential Lock

Axle Differential Lock section



Gear Set   Crown & Pinion # RE16446   # AR47129   front

Crown Marked # R41975   or   # R80022

and Shaft # R45202   or   # R80023



Side Gear # R74869   # R60008



Side Gear # R74868   # R60007



Pinion Spider Gear # R80880   # Z12964



Pinion Spider Shaft # R71814



Differential Case # AR95648   Marked # R73003   housing, lower section, crown support section



Differential Case # AR96863   housing, upper section, cover spider gear section
