JOHN-DEERE 544A PARTS

John-Deere 544A Transmission Parts, Torque Converter Parts, Axle Parts, Differential Parts, Planetary Parts

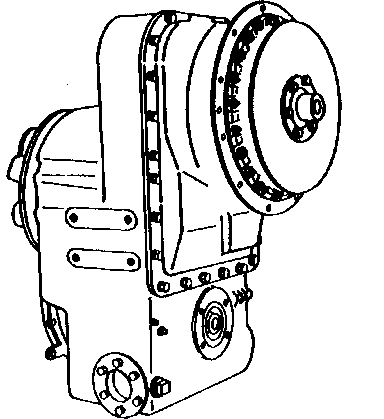

Transmission Parts

Transmission Assy. #

Transmission Assy. # AT73766

s/n# 135969 and after

Torque Converter Parts

Turbine # AT26041

Turbine # T27911

(WITH REAR AXLE DISCONNECT) (ALSO ORDER T38669 SECOND TURBINE DRIVE GEAR) (SUB T38735)

Turbine # T27911

(WITHOUT REAR AXLE DISCONNECT) (ALSO ORDER T38669 SECOND TURBINE DRIVE GEAR) (SUB T38735)

Turbine # T38735

Stator # T27913

WELLAND SER. NO. ( -85199)

Stator # T29928

WELLAND SER. NO. (85200- )

Pump # AT26042

(WITH REAR AXLE DISCONNECT) (SUB AT37544)

Pump # AT26042

(WITHOUT REAR AXLE DISCONNECT) (SUB AT37544)

Pump # AT37544

Accessory Drive Gear # AT52190   # AT27920 and # T39987

Hydraulic Pump Assy.   charging # AT26037   NLA

Prior to s/n# 77649

Hydraulic Pump Assy.   charging # AT56588

s/n# 77650 and after

Hydraulic Pump Assy.   charging # AT29929

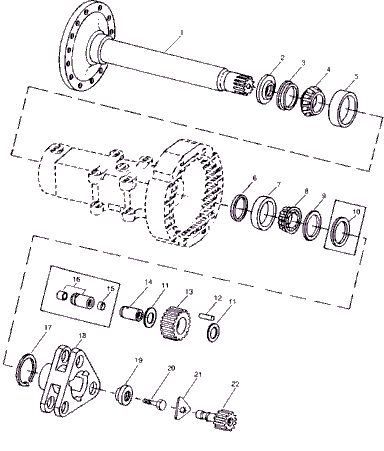

Axle, Differential & Planetary

Axle Assy. #

Axle Housing # AR44032   (MARKED R41570) (SUB FOR R41580)

Prior to s/n# 121499

Axle Housing # AR52040    (MARKED R48439, R48441 OR R75364)

s/n# 121500 and after

Differential Assy. #

Gear Set ¨Crown & Pinion¨ # RE18893

REAR, (MARKED R41973 AND YZ121004) (SUB RE16445 MARKED R80020 AND R80021 ALONG WITH APPROPIATE SHIMS)

Gear Set ¨Crown & Pinion¨ # RE18894

FRONT, (MARKED R41972 AND YZ121001) (ALONG WITH APPROPRIATE SHIMS)

Side Gear # R42445   (SUB R74868 AND R77145)

Prior to s/n# 121499

Side Gear # R42446   (SUB R63477 AND R77145)

Prior to s/n# 166905

Side Gear # R63477   (SUB FOR R54182)

s/n# 166906 and after

Pinion Spider Gear # R42443

Prior to s/n# 121499

Pinion Spider Gear # 42444

s/n# 121500 and after

Spider # R41902

Prior to s/n# 121499

Spider # R58425

s/n# 121500 and after

Flange Yoke #

Planetary Carrier Assy. #

Carrier # R33030   (SUB FOR R69445 AND F2253R)

Prior to s/n# 121499

Carrier # R69458   (SUB FOR R52331 AND R48442)

s/n# 121500 and after

Pinion Gear # R33032

Pinion Shaft # R33021

Sun Gear # R49427   shaft

Ring Gear # R75359

Hub Gear #

Axle Shaft # R42098

Prior to s/n# 121499

Axle Shaft # R69208   (SUB FOR R48433)

s/n# 121500 and after

Hydraulic Pump Assy. # AR56160
